Description

The ELM327 is a programmed microcontroller produced for translating the on-board diagnostics (OBD) interface found in most modern cars.

The ELM327 command protocol is one of the most popular PC-to-OBD interface standards and is also implemented by various vehicle manufacturers.

This ELM327 supports TORQUE software for Android system cell phone, OBDscope software for Symbian system cell phone, PPC(Windows Mobile) system cell phone, ScanMaster-ELM for PC etc.

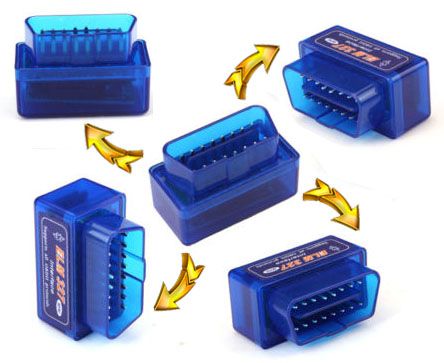

 photo ELM3272.jpg

Features :

OBD SCAN is the newly developed wireless scan tool. It supports all OBD-II protocols
0.Automatic
1.SAE J1850 PWM(41.6Kbaud)
2.SAE J1850 VPW(10.4Kbaud)
3.ISO9141-2(5 baud init,10.4Kbaud)
4.ISO14230-4 KWP(5 baud init,10.4 Kbaud)
5.ISO14230-4 KWP(fast init,10.4 Kbaud)
6.ISO15765-4 CAN(11bit ID,500 Kbaud)
7.ISO15765-4 CAN(29bit ID,500 Kbaud)
8.ISO15765-4 CAN(11bit ID,250 Kbaud)
9.ISO15765-4 CAN(29bit ID,250 Kbaud)
A.SAE J1939 CAN(29bit ID,250*Kbaud)
B.USER1 CAN(11*bit ID,125*Kbaud)
C.USER2 CAN(11*bit ID,50*kbaud)
*default settings(user adjustable)

1.Works with all OBD-II compliant vehicles
2.Wireless (Bluetooth) 5~10 meter
3.Software included for Palm, PDA,Mobile
4.Software included for Windows PC
5.Software included for Windows Smartphone

Works on Petrol and Diesel cars!
CHECK AND CLEAR ERROR CODES!!
COMPATIBLE WITH LATEST CARS in INDIA.

Functions :

1.Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).
2.Clear trouble codes and turn off the MIL ("Check Engine" light)
3.Display current sensor data, including:
4.Engine RPM
5.Calculated Load Value
6.Coolant Temperature
7.Fuel System Status
8.Vehicle Speed
9.Short Term Fuel Trim
10.Long Term Fuel Trim
11.Intake Manifold Pressure
12.Timing Advance
13.Intake Air Temperature
14.Air Flow Rate
15.Absolute Throttle Position
16.Oxygen sensor voltages/associated short term fuel trims
17.Fuel System status
18.Fuel Pressure
19.Many others...
For your information:
For your vehicle to be
OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.

Write a review

Please login or register to review

SUPER MINI ELM327 BLUETOOTH v2.1 EOBD 2 CAN BUS OBD2 CAR READER SCANNER

  • Product Code: OBD
  • Availability: 50
  • 385

  • Ex Tax: 385
